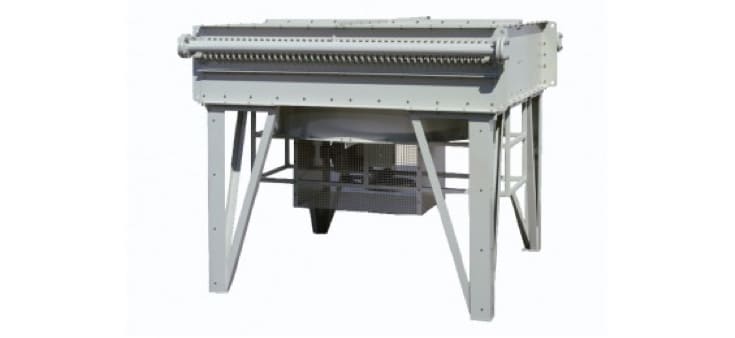

Liquid To Air Heat Exchanger - Engine Oil Cooler

TEMP-TROLLER® 100-Series

The TEMP-TROLLER® 100-SERIES can be designed to ASME Code and Proprietary API 661 specifications and customized with many other options. Please contact us for more information on these units and their customization options.


Key Features

  • FIN-COOL® design features including our exclusive SwirlFlow Turbulator that increases heat transfer by up to 550% over bare tube heat exchangers
  • Solid construction featuring full enclosures that surround heat exchanger cores to optimize air flow
  • Selection of motor type AC (230/460 VAC - 3 phase - TEFC) or hydraulic
  • Multi-row heat exchanger cores for maximum heat transfer capacity
Liquid To Air Heat Exchanger - Engine Oil Cooler

Specifications

  • Maximum operating pressure of 300 PSI
  • Maximum operating temperature of 350°F
  • Multi-circuit units also available
